Release Notes
PanelView Plus 7 Standard (2711P-*8S) Firmware and compatibility that applies to all catalog items in this product line.
Version 15.00-20240927 (released 12/2024)
Catalog Number PanelView Plus 7 Standard (series D)
These release notes describe version information for PanelView Plus 7 Standard, version 15.00-20240927 (released 12/2024).
Requirements
This release has the following requirements.
System requirements
PanelView Plus 7 Standard Firmware Upgrade Package 15.00-20240927 works within the system requirements of all Rockwell
Automation® software products. For the latest compatibility information, refer to the Product Compatibility and Download Center.
Hardware requirements
PanelView Plus 7 Standard Firmware Upgrade Package 15.00-20240927 requires the following hardware:
- PanelView Plus 7 Standard terminal types
Component revisions
The following table identifies the new component revision information after PanelView Plus 7 Standard Firmware Upgrade
Package15.00-20240927is installed.
|
Components
|
Revisions
|
|
FactoryTalk View ME
|
15.00.00
|
|
FactoryTalk ViewPoint
|
15.00.00
|
|
FactoryTalk Services Platform
|
6.50.00
|
|
FactoryTalk Linx
|
6.50.01
|
|
Operating System
|
2.65.00
|
|
Operating System Extensions
|
2.65.00
|
|
Fonts
|
2.00.00
|
Features
This release includes the following system features.
PanelView Plus 7 Standard Firmware Upgrade Package 15.00-20240927 contains updates for PanelView Plus 7 Standard terminals and includes the following new and enhanced features:
- ME Recipe ActiveX control enhancement
Add ME Recipe 4 ActiveX control to support 1000 floating tags.
- FactoryTalk ViewPoint feature
Improve the security for FactoryTalk ViewPoint to prevent XXE injection on PanelView Plus 7 terminals.
- Security enhancements
- OpenSSL is upgraded to 3.0.14, which includes the latest security fixes and enhancements to protect against known vulnerabilities.
- Enhanced security features to prevent remote code execution and path traversal vulnerabilities.
Corrected Anomalies in This Release
This release corrects the following anomalies.
The list identifies the anomalies corrected in PanelView Plus 7 Standard Firmware Upgrade Package 15.00-20240927.
- ME Web Browser ActiveX control opens the control panel instead of only the browser. First identified in PanelView Plus 7 Standard Firmware Upgrade Package 13.00. [Jira 3800998]
- After clicking a Numeric Input Enable button, the numeric pop-up keypad or scratchpad shows asterisks when the tag value is -.07. First identified in Firmware Upgrade Package 12.00. [Jira3216840]
- Terminal becomes unresponsive when writing to a BOOL datatype tag through KEPServer. First identified in Firmware Upgrade Package 13.00. [Jira 3174070]
Known Anomalies in This Release
This release has the following known anomalies.
- Logging data to an SD card may cause the terminal to stop responding. First identified in Firmware Upgrade Package 11.00. [Jira 249766]
To avoid this problem, log data to the default internal storage or an external USB drive. For more information about this
problem, see the Knowledgebase Document ID: BF24012-PanelView Plus 7 Standard freezes when using SD card for data
log storage.
Known Anomalies from Previous Releases
These anomalies are from previous releases but are still known in this release.
- VNC configuration file cannot be saved. First identified in Firmware Upgrade Package 10.00. [Jira 361421]
There is currently no workaround for this anomaly.
- If two or more pens are used with the display option to isolate the graphs, the colors of the pens will no longer match the legend and will appear offset. First identified in Firmware Upgrade Package 7.00. [289734]
To avoid this problem, use a Next Pen button to align the legend with the pen.
- The date of backup file is not updated after the file is overwritten. First identified in Firmware Upgrade Package 7.00. [EOI00037403]
There is currently no workaround for this anomaly.
- The default background image is always selected after restoring a backup file that uses a different image. First identified in Firmware Upgrade Package 7.00. [EOI00037616]
There is currently no workaround for this anomaly.
- Transparency does not work for a Symbol Factory object containing PolyPolygon elements. First identified in Firmware Upgrade Package 10.00. [Jira 343451]
To avoid this problem, you can use the PNG files provided in Knowledgebase Document ID: BF17144 -
Transparency is not working correctly on the PanelView Plus 6/7 terminals for Symbol Factory objects.
Functional Changes
This release has the following functional changes from the previous release.
PanelView Plus 7 Standard Firmware Upgrade Package 15.00-20240927 has no changes in functionality since the last release.
Application Notes
This release has the following application notes.
The following are the application notes for PanelView Plus 7 Standard Firmware Upgrade Package15.00-20240927.
When to perform an update?
If any of the listed anomalies appear similar or identical to symptoms experienced on your terminal's software or hardware, we
recommend that you perform an update to the listed firmware release to eliminate potential issues.
After performing a firmware upgrade, third-party applications may need to be reinstalled and the FactoryTalk View ME startup
application may need to be reconfigured.
How to get firmware updates?

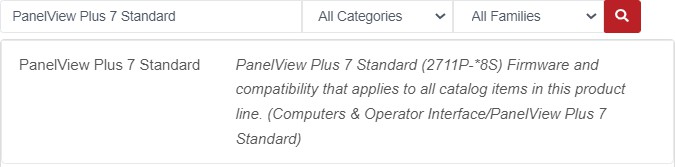

Firmware Upgrade Packages are available from the Product Compatibility and Download Center. After signing in, a selection of
updates will become available for download.
To get the firmware updates
- Select PanelView Plus 7 Standard.
- Select the version of the Firmware Upgrade Package and click Downloads.
- Click
and follow the web page instruction to complete the download.
Rockwell Automation Knowledgebase Documents
Additional information regarding PanelView Plus 7 firmware updates can be found in Rockwell
Automation Knowledgebase. To locate pertinent documents, search using the keywords:
"PanelView Plus 7", "PanelView Plus v7", "TOC", or "PVP7".
